Mechanical Locks

Hooklatch w/Deadbolt

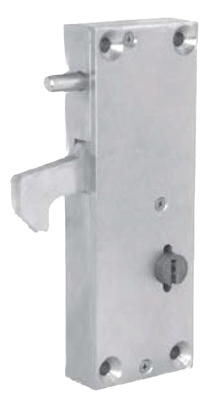

30D Series Paracentric Hooklatch w/Deadbolt

Part No: 7L 30DLH-5P1-C(Shown)

The Series 30D Hookbolt are used in a slide to close w/Deadbolt applications, Manual Tracksets (See Door Devices above). They use a Paracentric Key that can be keyed on either side or both sides. The lock bolt size is 1/2" with 2 1/8" projection. The lock tumblers a heavy duty brass pick-proof in 5 or 6 plate combos.

Specifications:

Size: 3 1/2" x 10" x 1 1/2" Thick

Key Cylinder: Paracentric style

Material: Steel

Bolt Material: 1/2" x 2" Steel

Finishes: Zinc plated

Fasteners: 4ea. 5/16-18 x 2" Security Flathead Torx

Mounting Template: Series 30D

Options Available:

Cylinder Key Cut: 7L 30RH-5P1-"A" or "C"

Keyed Both Sides: 7L 30RH-5P2-C

Six Tumbler: 7L 30RH-6P1-C
